Product Overview：

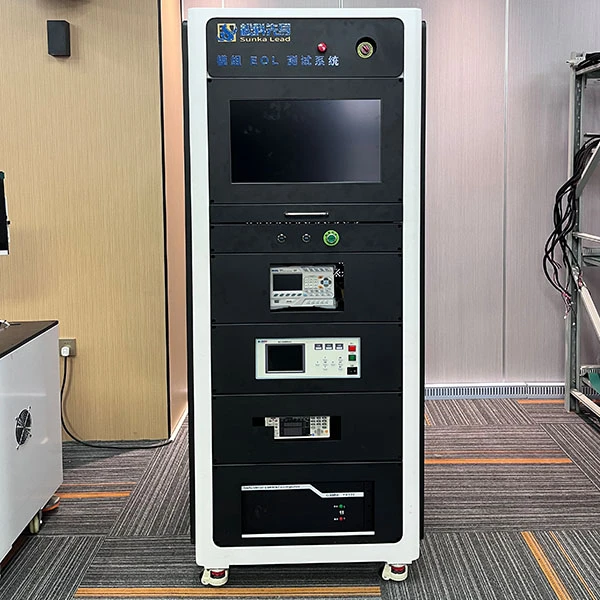

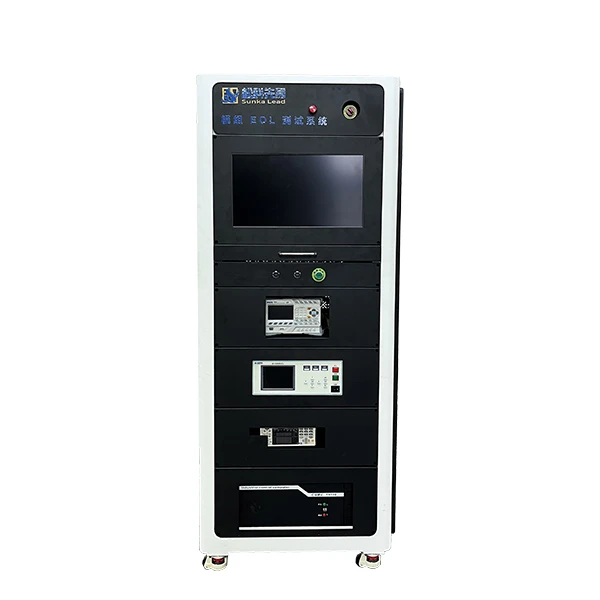

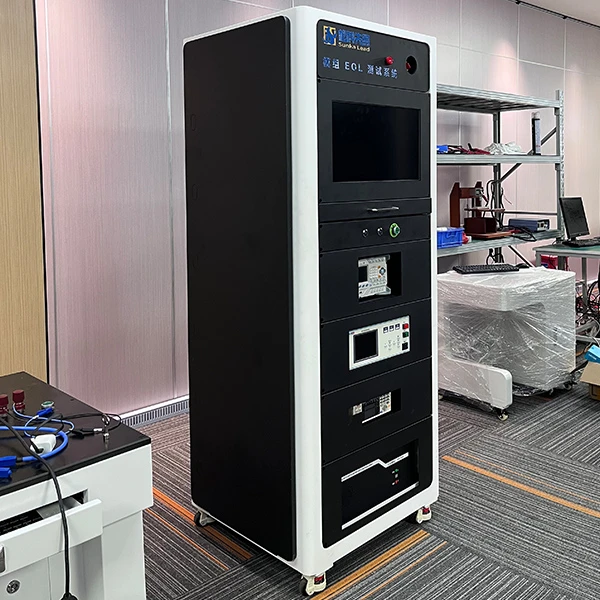

Lithium Battery End-of-Line (EOL) Testing Equipment

The lithium - battery EOL testing equipment is used to comprehensively evaluate the performance, safety, and quality of lithium
batteries at the end of production. It measures electrical properties (voltage, internal resistance, capacity), tests charge
-discharge performance, checks safety functions (over - charge, over - discharge, short - circuit protection), and ensures
consistency (voltage and capacity) in battery packs.
1. Comprehensive Performance Testing
* Tests capacity, voltage, internal resistance, and cycle life.
2. High-Precision Measurement * Measures battery parameters with accuracy up to ±0.1%.
3. Automated Testing Process
* Fully automated operation with minimal manual intervention.
4. Multi-Channel Testing
* Supports simultaneous testing of multiple battery cells or packs.
5. Data Logging and Analysis
* Records test results and generates detailed reports for quality control.
6. Compatibility with Various Battery Types
* Works with cylindrical, prismatic, and pouch cells.

Machine parameters:

1) Equipment working temperature: 0~40℃.

2) Adaptable humidity: 10%~70%R.H. (no condensation).

3) Power supply: AC220V, 50±2 Hz.

4) Atmospheric pressure: 90~105kPa.

5) Charge and discharge output: DC100V/400A.

Note: The temperature and humidity range to ensure the accuracy of the instrument: 23±3℃,

 below 70%RH (no condensation); the accuracy in the technical parameters is measured at the device end,

and the long wiring harness will have a certain impact on the accuracy (when testing the insulation resistance,

the insulation resistance value is generally not more than 2G ohms due to the influence of the tooling, plug-in,

and wiring harness distributed capacitance).
